Faster self-drilling screws for thicker wall brackets h1>
EJOT optimises floating and fixed points for connecting component assemblies of up to 7.0 mm
The specifications for an optimal building insulation are increasingly tightened by the legislator. Building owners must use thicker insulating materials on the facade in order to meet increasing energy requirements. Thicker insulating materials go along with corresponding fastening systems: If 3 mm-thick wall brackets used to be enough in the past, wall brackets of 4 to 5 mm are needed today.Maximum flexibility
For fastening aluminium or stainless steel wall brackets to substructures made of aluminium support profiles for rear-ventilated facades according to DIN 18516-1, EJOT has optimised the floating and fixed point screws. In future, component assemblies of 3.1 to 7.0 mm can be covered with only two screws. For the contractor, this means a maximum flexibility when using the new screws. The new test certificate P-BWU02-148004 is based on these screws which are both available in A2 stainless steel and A4 stainless steel.

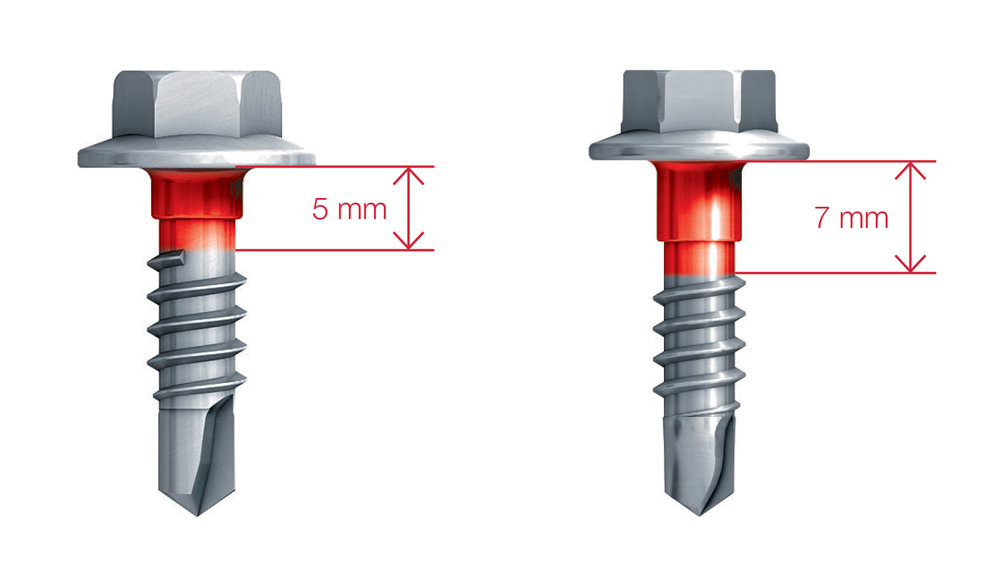

On the left: EJOT stainless steel SAPHIR self-drilling screw (JT4/JT9)-3H/5-5.5×19 for component assemblies from 3.1 – 5.0 mm (component I + component II) On the right: EJOT stainless steel SAPHIR self-drilling screw (JT4/JT9)-3H/7-5.5×21 for component assemblies from 6.0 – 7.0 mm (component I + component II) Both screws are available in A2 stainless steel (JT4) and A4 stainless steel (JT9).

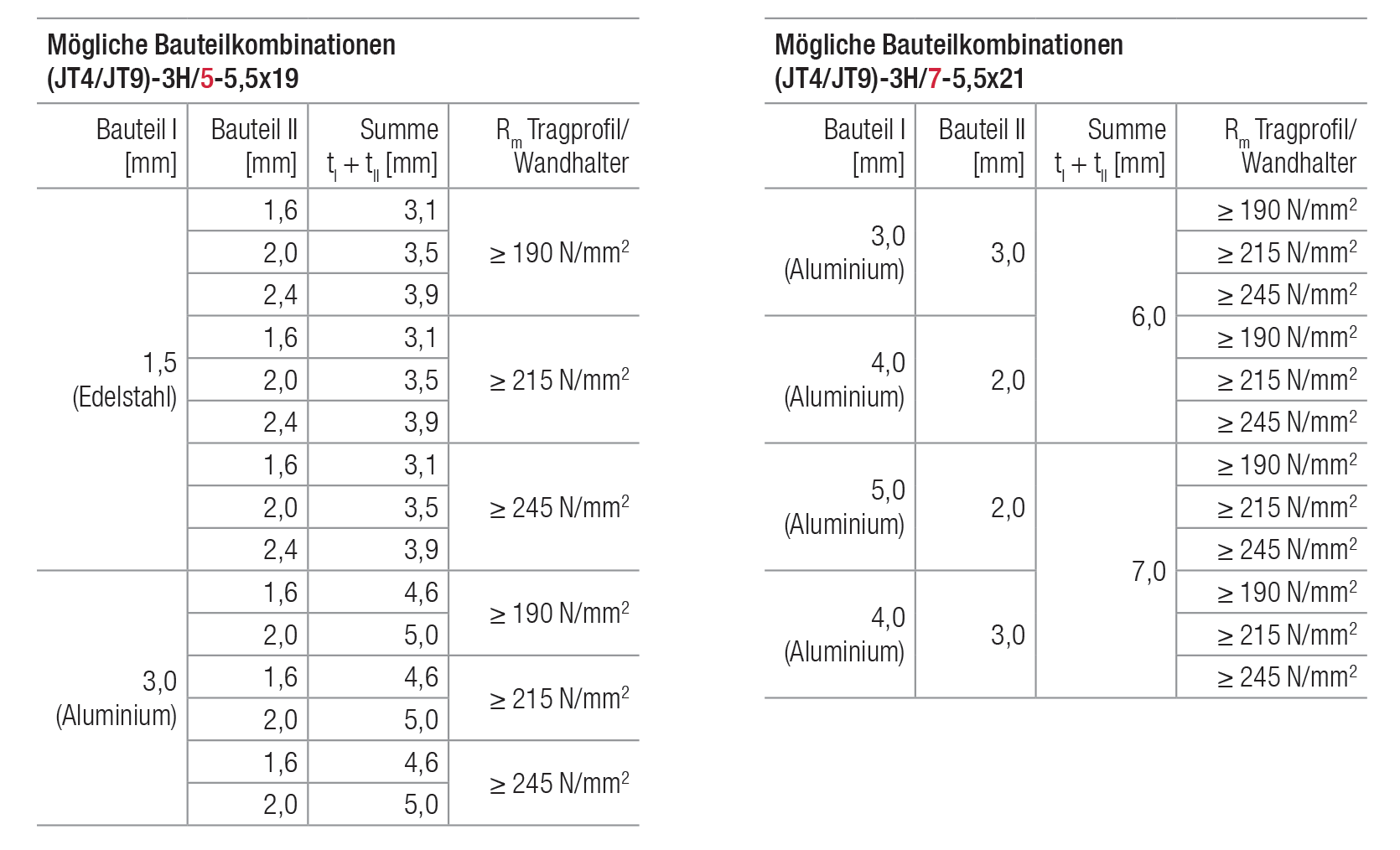

Possible component assemblies of EJOT floating and fixed point screws for wall brackets and support profiles in rear-ventilated facades.
