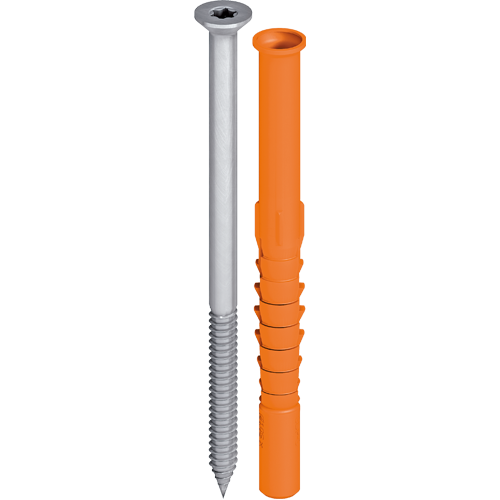

EJOT® Diblu de fațadă SDP-S-10G



Specificații
-
Aplicații
- Pentru fixarea componentelor din lemn în BCA
-
Proprietăți
- Fixare perfectă datorită zonelor de expansiune combinate
- Diblu de fațadă cu șurub în două trepte
- Identificarea produsului prin culori diferite de manșon
- Capacitate portantă mare
- Disponibil cu șuruburi din oțel sau oțel inoxidabil
-
Detalii tehnice
Valori caracteristice
- Acţionare: cap hexalobular / TORX® T40
- Adâncime de perforare ≥ t: 80 mm
- Adâncime de ancorare ≥ hv: 70 mm
Sarcini admise
- Rezistența compresivă a BCA-ului [N/mm2]
- BCA 2: 0,75 kN
- BCA 3: 1,31 kN
- BCA 4: 1,87 kN
- BCA 6: 3,00 kN
- Factor parțial de siguranță YMAAC: 2,00
- Moment de încovoiere caracteristic
- Șurub din oțel: 17,7 Nm / ΥMs1,50
- Șurub din oțel inoxidabil: 20,6 Nm / ΥMs1,87
Observaţie
Pentru planificare şi procesare vă rugăm să reţineţi aprobarea ETA-12/050
Vă rugăm să alegeți o variantă de produs
Filtru
Filtre selectate
Descriere produs | Cod articol | Unitate |
---|---|---|
SDP-S-10Gx80-V | 8530080420 | 100 |
Specificații
|
||
SDP-S-10Gx100-V | 8530100420 | 100 |
Specificații
|
||
SDP-S-10Gx120-V | 8530120420 | 100 |
Specificații
|
||
SDP-S-10Gx140-V | 8530140420 | 100 |
Specificații
|
