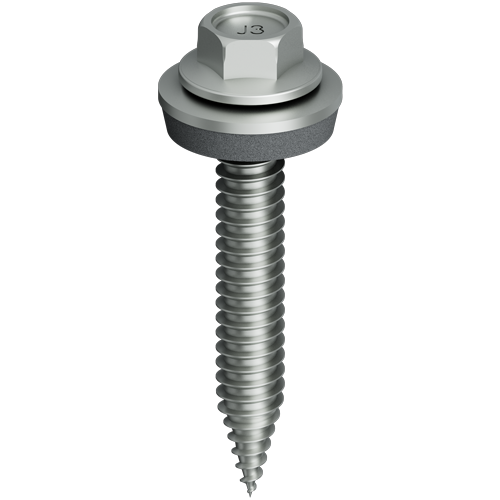

EJOFAST® self-drilling screw JF3-2-6.0
Specificații
-
Aplicații
Fastening components and brackets to thin-walled metal profiles for photovoltaic installations:
- Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets)
- Fixing wind deflector sheets to profiled elements
-
Proprietăți
- A2 stainless steel with hardened steel drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Non-skid application
- Fastening with reduced swarf
- Excellent gripping properties
-
Detalii tehnice
- Diameter: 6.0 mm
- Drilling capacity tI + tII: 0.88 + 0.88 mm
- Drive: Hexagon A/F8
- Installation rotation speed: max. 1800 rpm
Filtru
Filtre selectate
| Descriere produs | Cod articol | Unitate |
|---|---|---|
| JF3-2-6.0x25 E16 | 3595511391 | |
Specificații
|
||
| JF3-2-6,0x25 E16 VE100 | 6595511391 | |
Specificații
|
||
| JF3-2-6.0x40 E16 | 3595513931 | |
Specificații
|
||
| JF3-2-6.0x50 E16 | 3595512931 | |
Specificații
|
