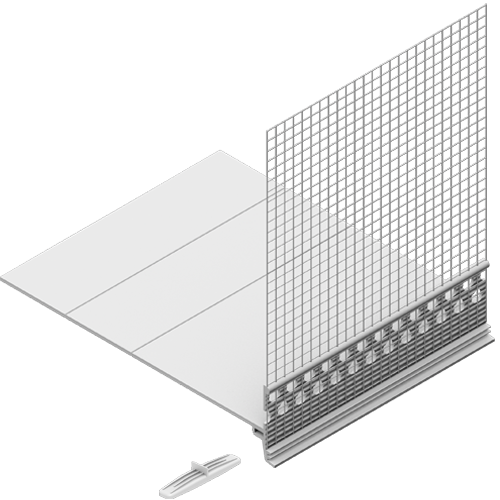

Profil de soclu Pro SOP

Aplicații

• Lățimea profilului Pro SOP poate fi adaptată în mod flexibil la grosimea izolației prevăzute prin intermediul unor puncte de rupere predeterminate. Suprafața canelată a profilului soclului asigură o aderenta optimă a tencuielii, iar în același timp, plasa din fibră de sticlă sudată pe suprafeței profilului, permite o integrare optimă a tencuielii. O margine de picurare integrată în profilul soclului evacuează în mod specific orice apă de ploaie departe de clădire.

Proprietăți

• Exact and clean plaster finish
• Better plaster grip thanks to the grooved surface
• Targeted drainage of water through drip edge
• Rectangular plug-in connector for aligned and perpendicular edges
• Flexible adaptation to insulation thickness thanks to predetermined
• breaking points
• With recessed base with perimeter insulation, suitable for all insulation thicknesses
• In combination with the basic baseboard profiles (BSOP-HL) insulation thicknesses between 60 mm and 320 mm can be covered

Detalii tehnice

• Hard PVC profile with white glass fiber mesh 12.5 cm / 160 g, alkali-resistant and non-shifting
• The basebead profiles are equipped with predetermined breaking points and can therefore be shortened on site by snapping them off. SOP can be shortened: 180 to 150 mm, 120 mm to 90 mm, SOP 120 to 90 mm and 60 mm.

Please note

• Store in a cool and dry place
• Transport and storage lying down Basebead profile EJOT® Pro SOP Basebead profile with glass fiber mesh, predetermined breaking point and plug-in connector 42

Processing guidelines

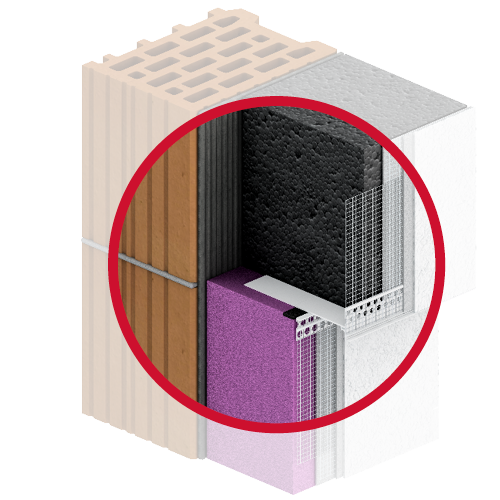

The reinforcement compound should be applied approximately in the same width as the mesh strips. The base profile is then inserted between the facade and base insulation panels and embedded and smoothed into the wet reinforcement compound. The base profiles are connected at the front with the included plug-in connectors. The glass fiber mesh of the subsequent surface reinforcement must be pulled up to the plaster edge in order to counteract cracking in the joint area. We recommend the additional use of a compressed sealing tape between the base insulation and the basebead profile.
