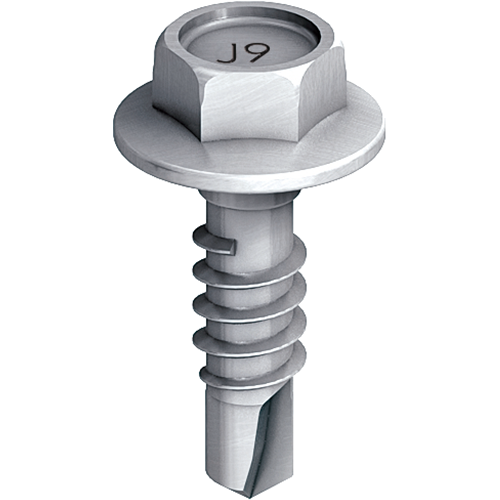

EJOT® Șurub autoforant JT9-3H/5-5,5

JT9-3H-5-5,5
JT9-3H-5-5_5x19_foto2

Specificații

  • Aplicații

    • Pentru formarea punctelor culisante și fixe în cazul subconstrucțiilor la fațade
    • Pentru îmbinarea consolelor de perete din oțel inoxidabil sau aluminiu preperforate pe profilele portante din aluminiu
    • Pentru combinații de componente constructive de 3,1-5,0 mm (componenta I + componenta II)

  • Proprietăți

    • Oțel inoxidabil A4

  • Detalii tehnice

    • Diametru: 5,5 mm
    • Capacitate de găurire tI+tII: 3,0 mm
    • Acționare: cap hexagonal SW8
    • Șaibă presată: 13,0 mm
    • Lungimea zonei fără filet: 5,0 mm



    Indicație

    Combinații de componente verificate cu Rm (componenta II) ≥ 190 ≥ 215 ≥ 245 N/mm2. Valorile capacității portante se găsesc în certificatul de testare general al autorității de supraveghere a construcțiilor (abP)P-BWU02-148004

Filtru

Filtre selectate

    Descriere produs Cod articol Unitate
    JT9-3H/5-5.5x19 VE100 6380540340 500

    Specificații

    Descriere produs
    JT9-3H/5-5.5x19 VE100
    Unitate
    500
    JT9-3H/5-5.5x19 7380540340 500

    Specificații

    Descriere produs
    JT9-3H/5-5.5x19
    Unitate
    500
