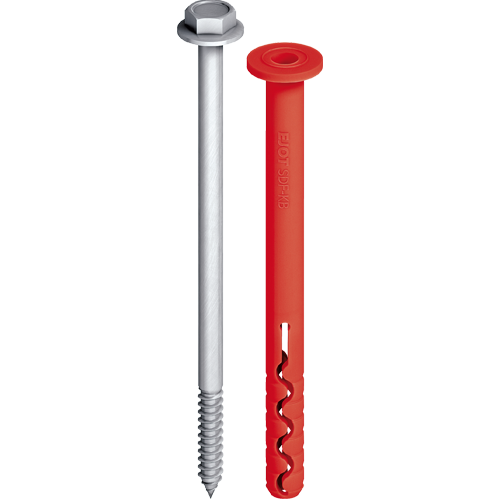

EJOT® Diblu de fațadă SDF-KB-8V


Specificații
-
Aplicații
- Pentru fixarea substructurilor de metal pe structurile din beton și zidărie
-
Proprietăți
- Cap hexagon cu flanșă
- Diametru de perforare mic
- Strat de protecţie fără Cr(VI)
- Izolare termică şi galvanică
- Identificarea produsului prin culori diferite de manșon
-
Detalii tehnice
- Acționare: cap hexagon SW10
- Adâncime de perforare ≥ h1: 60 mm
- Adâncime de ancorare ≥ hnom: 50 mm
Sarcini admise*
- Rezistență la tracțiune NRk,p în beton < C16/20: 1,79 kN
- Rezistență la tracțiune NRk,p în beton ≥ C16/20: 2,58 kN
- Cărămidă Mz 28-1.8, NF: 0,71 kN
- Cărămidă plină silico-calcaroasă KS, NF 20-2.0: 0,57 kN
Rezistența la forfecare VRk, s
- Diblu cu șurub din oțel: 4,24 kN
Moment încovoiere MRk, s
- Diblu cu șurub din oțel: 6,56 Nm
* se aplică unui interval de temperatură de 30-50 °C / 50-80 °C
Observație
Pentru planificare și prelucrare vă rugăm să consultați ETA-15/0387!
