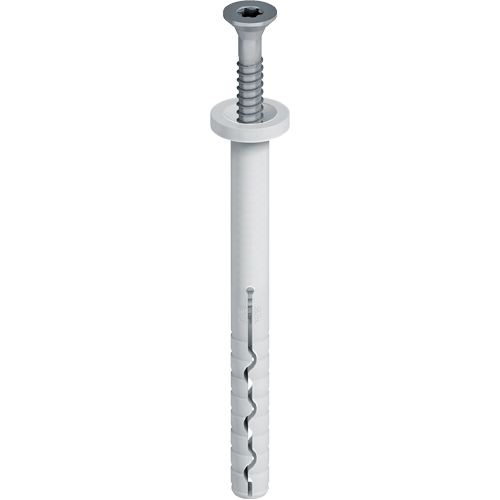

ejotherm® SDK U

Aplicații

• Fastening of rail-systems
• Screw-in anchor for rails
• For fixing holding and base rails
• Approved for all categories of building materials

Proprietăți

• Approved for all categories of building materials
• Shortest embedment depths, minimum drill hole depths
• Highest loads for maximum safety
• Economic anchor usage
• Premounted screw for quick installation
• To compensate facade tolerances use spacers EJOT AS

Detalii tehnice

Anchor diameter: 8 mm
Collar diameter:16 mm
Drill hole depth h₁ >: 35 mm (75 mm)
Embedment depth h_ef >: 25 mm (65 mm)
Screw drive: TX30
Use categories acc. to ETA: A, B, C, D
German DIBt approval: Z-21.2-1769
European Technical Approval: ETA-04/0023

Values in parentheses: anchoring in aerated concrete (use category E)
