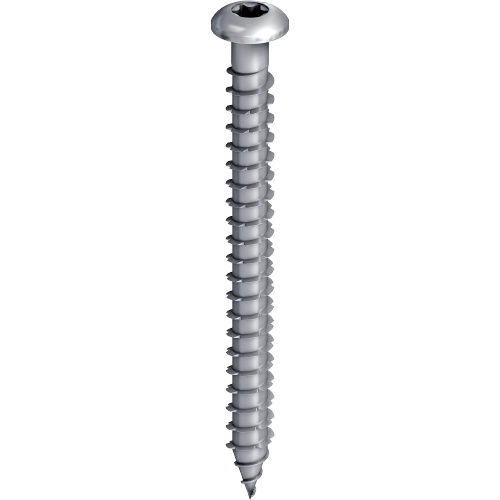

EJOT® frame anchor type RA-Z

Rahmenanker_RA-Z

Specificații

  • Applications

    • Direct fastening of plastic and wooden windows in masonry and concrete, without any anchors
    • Especially suited for PVC outer Frame without reinforcing steel rods
    • Efficient spaced fixing of windows and doors
    • Installation according to the RAL quality association guidelines for windows and doors

  • Properties

    • Sleek and broad supported head (Ø12 mm)
    • Burglary resistant (RC2), tested on steel-free plastic windows
    • Tested as fastening element acc. to the ETB guidelines "Building components which protect against falling from heights"
    • Reduced forming moulding and exact fit due to perfect thread geometry
    • Fast installation, reliable anchoring
    • Case-hardened steel

  • Technical Data

    • Head diameter: 12 mm
    • Drive: T30

Filtru

Filtre selectate

    Descriere produs Cod articol Unitate
    Rahmenanker RA-Z-7.5x40 2271040601

    Specificații

    Descriere produs
    Rahmenanker RA-Z-7.5x40
    Unitate
    Rahmenanker RA-Z-7.5x60 2271060601

    Specificații

    Descriere produs
    Rahmenanker RA-Z-7.5x60
    Unitate
    Rahmenanker RA-Z-7.5x80 2271080601

    Specificații

    Descriere produs
    Rahmenanker RA-Z-7.5x80
    Unitate
    Rahmenanker RA-Z-7.5x100 2271100601

    Specificații

    Descriere produs
    Rahmenanker RA-Z-7.5x100
    Unitate
